Askholmen
Price: The seller asks for best offer after inspektion, we can guide.

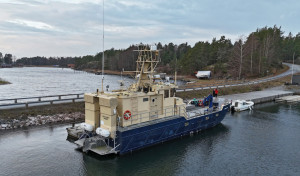

Kewatec Work 2200 survey vessel built in Finland 2009. 21.40 m x 5.40 m. 2 x Scania DI16 engines with FF-Jet 500 water jets. Palfinger PK 8000T crane on fore deck. Bow ramp.
Salon and galley for six seated. Workstation behind the wheel house for two surveyors.
Askholmen is located outside Stockholm on Ljusterö and can be inspected after agreement with Shipsforsale.
Salon and galley for six seated. Workstation behind the wheel house for two surveyors.
Askholmen is located outside Stockholm on Ljusterö and can be inspected after agreement with Shipsforsale.
Specifications
- (FlagState)Flag State: SE, Sweden
- (ShipClassificationSociety)Classification: Transportstyrelsen - Swedish Transport Agency
- (CallSign)Call Sign:
- (LOA)LOA: 21.40 m
- (Length)Length: 19.44 m
- (LPP)LPP: m
- (LWL)LWL: m
- (Beam)Beam: 5.40 m
- (Draft)Draft: 1.20 m
- (MoldedDraft)Molded Draft: 1.98 m
- (Shipyard)Shipyard: Kewatec Aluboat OY, Finland
- (BuildNumber)Yard Number: 228
- (YearBuilt)Year Built: 2009
- (BoatType)Vessel Type: Kewatec Work 2200, ROV- Survey / work vessel
- (ConversionShipyard)Refitted at:
- (ConversionShipyardNotes)Refit details:
- (HullMaterial)Hull Material: Aluminium
- (HullMaterialThickness)Thickness: mm
- (SuperstructureMaterial)Superstructure Material: Aluminium
- (SuperstructureMaterialThickness)Thickness: mm
- (HomePort)Home Port:
- (AirDraft)Air Draft: m
- (Height)Height from keel: m
- (Tonnage)Tonnage: 62 GT / 18 NT
- (LightDisplacement)Light Ship: 42.6 t
- (Displacement)Displacement: t
- (BuiltForClass)Built to Class:
- (ClassType)Class Type:
- (BuiltForClassType)Built to Class Type:
- (Cabins)No. of cabins:
- (MaximumPassengersForSpeedRange1)No. of passengers:
- (MaximumPassengersForSpeedRange2)No. of passengers:
- (EngineFuelConsumptionPerHour)Consumption: Survey speed, 60 l/hour, full speed 300 litres/hour
- (EngineFuelConsumptionTonnesPerDay)Consumption: tonnes/day
- (EngineFuelConsumptionPerDistance)Consumption: litres/distance
- (EngineCruisingSpeed)Cruising Speed: 10 knots
- (EngineTopSpeed)Top Speed: 16 knots
- (EngineRange)Range: 200 nm
- (CargoCapacity)Cargo Capacity:
- (Crane)Crane:
Machinery

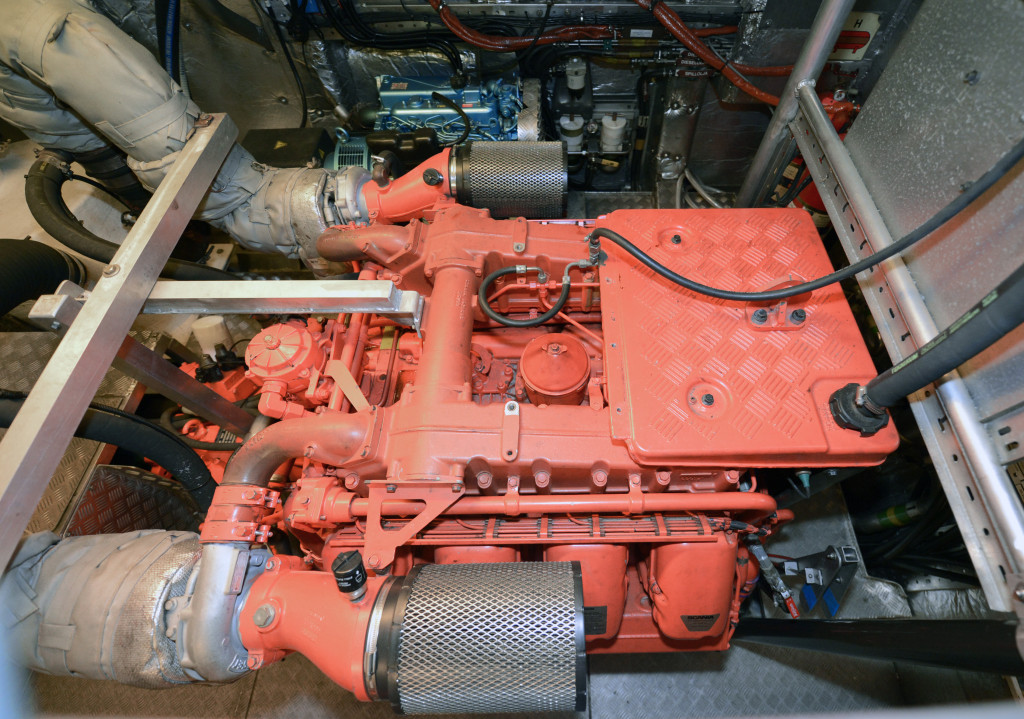

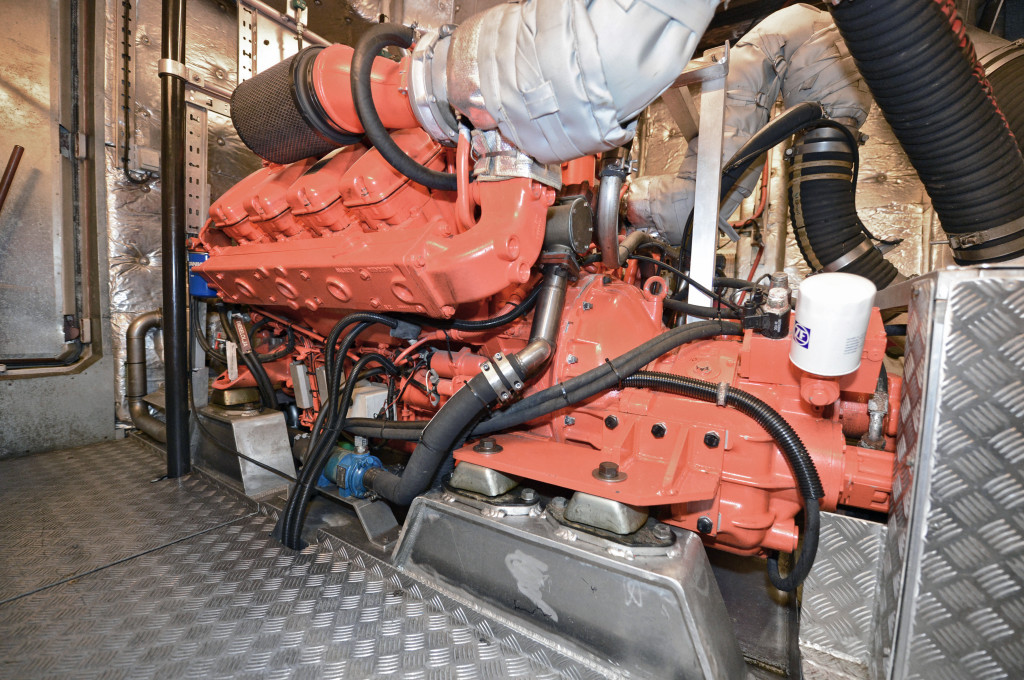

- (MainEngines)Main Engines: 2 Scania DI16 60 M, 2 x 550kW, at 2100 rpm, HM 1 < 7000, HM 2 <7 Running Hours
- (MainEngineNotes)Comment:
- (ReversingGear)Gearbox: ZF 360, Reduction 1.5:1
- (PropulsionSystem)Drive type: FF-Jet 500 water jet
- (DriveShaftDiameter)Shaft ∅: mm
- (Sterndrive)Stern drive:
- (RudderType)Rudder Type:

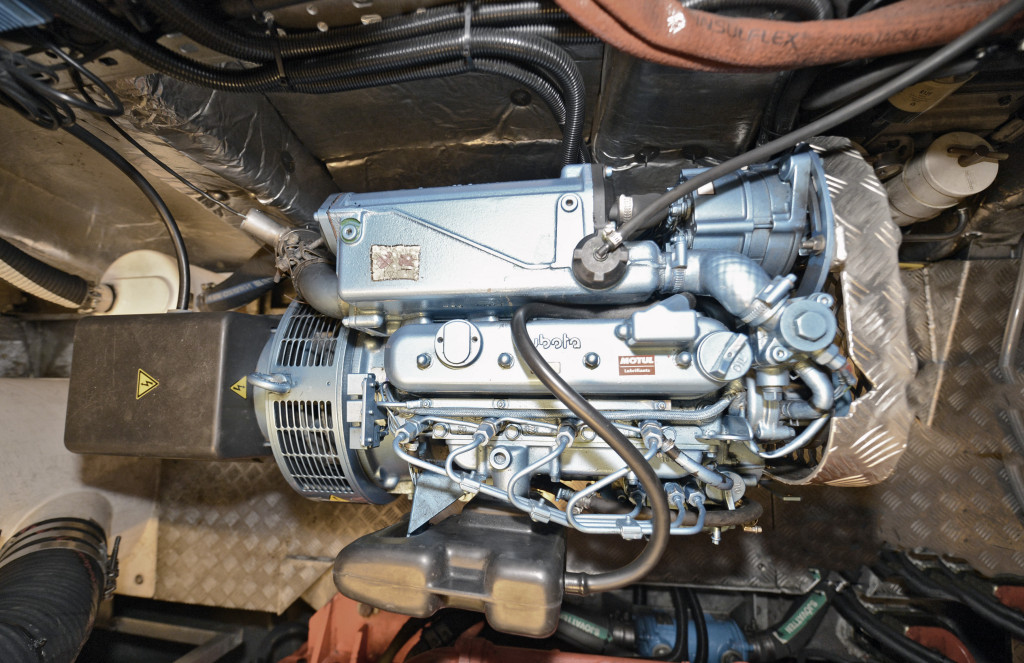

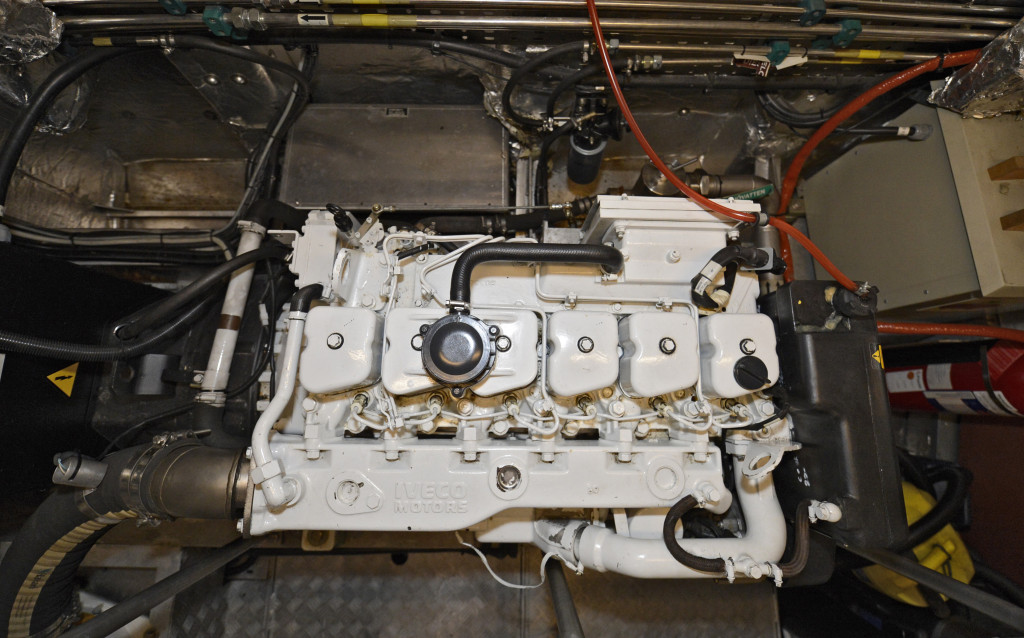

- (AuxiliaryEngines)Auxiliary Engines: Iveco N67 MNAM, 110 kW, 5800 Running Hours, Stamford generator UC.224G, 65 kVA Nanni diesel 4.150 HE, 6425 Running Hours, 27 kVA
- (EmergencyGenerators)Emergency Generators:
- (PortGenerators)Port Generators:
- (BowThrusters)Bow Thrusters:
- (ShipMachineryNotes)Misc:
Engine Room Equipment
- (LubricationOilOWSs)Lube Oil Separators:
- (FuelOilOWSs)Fuel Separators:
- (BilgeWaterOWSs)Bilge Water Separators:
- (Heaters)Heaters:
- (OilBurners)Burners:
- (WaterHeaters)Water Heater Boiler: Isotemp
- (HydrophorePumps)Hydrophore Pumps:
- (BallastPumps)Ballast Pumps:
- (AirStartPressureTanks)Pressure Tanks:
- (AirStartCompressors)Air Start Compressors:
- (AirCompressors)Compressors:
- (IsolationTransformers)Transformer: Noratel
- (BilgePumps)Bilge Pumps:
- (Stabilizers)Stabilizers:
- (SteeringGears)Steering Gears:
- (DesalinationUnits)Water Makers:
- (Inverters)Inverters:
- (StartBatteries)Start Batteries:
- (FirePumps)Fire Pumps:
- (ConsumptionBatteries)Consumption Batteries:
- (EngineRoomEquipmentNotes)Misc: Whisper Power Battery Charger WP-BC
Fire pump 4 kW, electric
Navigation Equipment
Cargo Capacity
- (DWT)DWT:
- (DWCC)DWCC:
- (DWAT)DWAT:
- (GrainCubicMeters)Grain CBM:
- (GrainCubicFeet)Grain CBft:
- (BaleCubicMeters)Bale CBM:
- (BaleCubicFeet)Bale CBft:
- (TimberCubicMeters)Timber CBM:
- (TimberCubicFeet)Timber CBft:
- (ContainersInHoldTEU)Containers cargo hold TEU:
- (ContainersOnHatchTEU)Containers on deck TEU:
- (TotalContainersTEU)Total Containers TEU:
- (ReeferPlugs)Reefer Plugs:
- (SelfUnloader)Self-sustaining cargo equipment:
- (WeatherDeckCargoHatchesType)Hatch Cover:
- (IntermediateDeckCargoHatchesType)Hatch tween deck:
- (WeatherDeckCargoHatchesArmLength)Lifting gear length:
- (CargoHatches)No. hatches:
- (BoxedCargoHolds)Boxed cargo holds:
- (CargoHolds)Cargo hold dimensions:
- (CargoPumps)Cargo pumps:
- (CargoHoses)Hoses:
- (RefrigerationSystem)Cooling system:
- (Pallets)Pallets:
- (SidePort)Access ports:
- (MaximumLoadOnHatches)Max. permissable load on hatch:
- (MaximumLoadOnTanks)Max. permissable load on tank top:
- (RampDimensions)Ramp size:
- (CargoTanks)Cargo tanks:
- (MaximumLoadOnDeck)Max. permissable load on deck:
- (MaximumAxleLoad)Maximum axle pressure:
- (HeightClearanceOnCarDeck)Height car deck:
- (CargoCapacityNotes)Misc: Deck space for 2 x 10" containers
Tank Capacity
- (DieselTanks)Diesel: 2 x 1500 l
- (DayTanks)Day tanks:
- (FreshWaterTanks)Fresh water: 380 l 40 l (hot water)
- (BlackWaterTanks)Septic: 650 l
- (GreyWaterTanks)Grey water:
- (BilgeWaterTanks)Bilge water:
- (WasteOilTanks)Waste oil: 2 x 250 l
- (LubricationOilTanks)Lube oil:
- (HydraulicOilTanks)Hydraulic oil:
- (CoolingWaterTanks)Cooling water:
- (FoamTanks)Foam tank:
- (BallastTanks)Ballast:
- (TanksNotes)Misc:
Safety Equipment
- (LifeBoats)Life rafts:
- (MOBBoats)MOB boats:
- (FireAlarmControlPanels)Fire alarm unit: Sea-Fire
- (NavigationLightControls)Navigation light control: Tranberg TEF 4720
- (EPIRBs)EPIRB: ACR Globalfix RLB-37
- (SARTs)Radar transponder SART: Jotron TRON 9 GHz
- (GMDSS_VHFRadios)Portable GMDSS VHFs: 2 Jotron Tron TR20 3 Motorola GP-340
- (AdultLifeJackets)Adult life jackets: 0
- (ChildLifeJackets)Infant life jackets: 0
- (FireSuppressionSystem)Fire fighting, engine room: CO2, 2 x 12 kg
- (EmergencyBatteryVoltage)Emergency battery Volt: 0
- (EmergencyBatteryAmperage)Emergency battery Amp: 0
- (SmokeDetector)Smoke detector:
- (HeatDetector1)Heat detector 1:
- (HeatDetector2)Heat detector 2:
- (FireIsolation)Fire isolation:
- (SafetyEquipmentNotes)Misc: 2 x 12 pers RFD liferafts
Deck Equipment
- (BollardPull)Bollard pull: 0 t
- (Wire)Wire: 0 m
- (AnchorWindlassOrCapstanType)Anchor windlass:
- (TowingWinches)Towing winches:
- (TowingHooks)Towing hooks:
- (HawserWinches)Rope winches:
- (FireSuppression)Fire canon:
- (Davit)Life boat davit:
- (Excavator)Excavator:
- (CargoBars)Cargo load equipment:
- (SearchLights)Search lights:
- (Anchors)Anchors:
- (Winches)Winches:
- (Capstans)Capstans:
- (Cranes)Deck Crane: 37 m wire Palfinger PK 8000T, 8 ton/m
- (DeckEquipmentNotes)Misc:
Certificates and documents
- Trade certificate Issued September 2021
- Tonnage certificate Issued June 2011
- Load Line certificate Issued September 2021
- Stability approval Issued February 2021
- Damage stability Issued January 2012
- Fire certificate Issued September 2020
- Asbestos certificate Issued December 2009
- Engine Air Pollution Prevention certificate Issued September 2009
Pictures

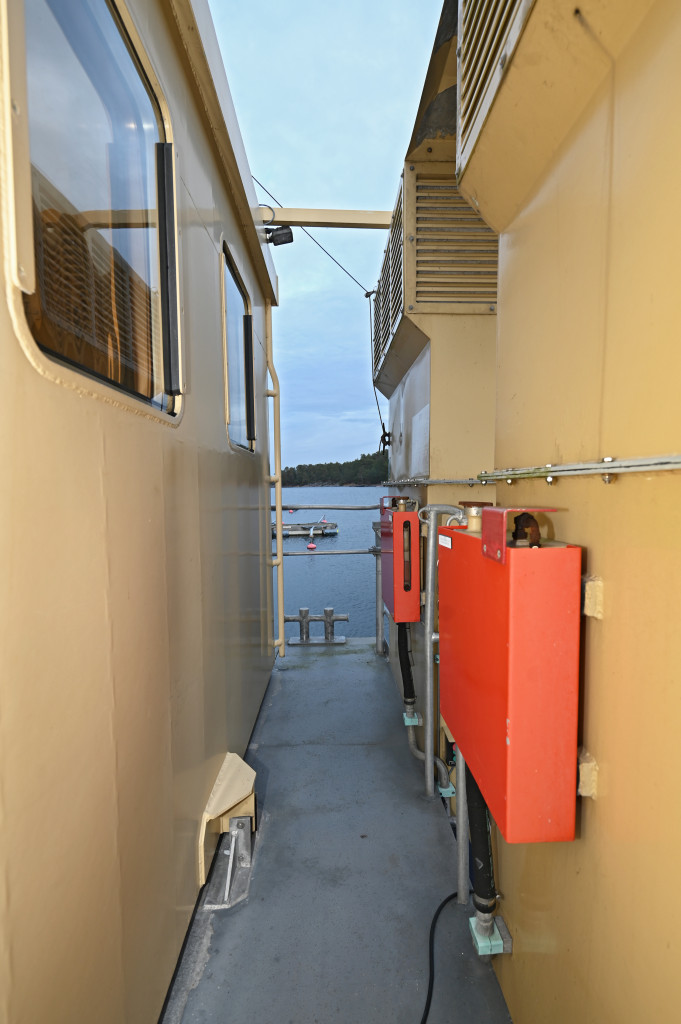

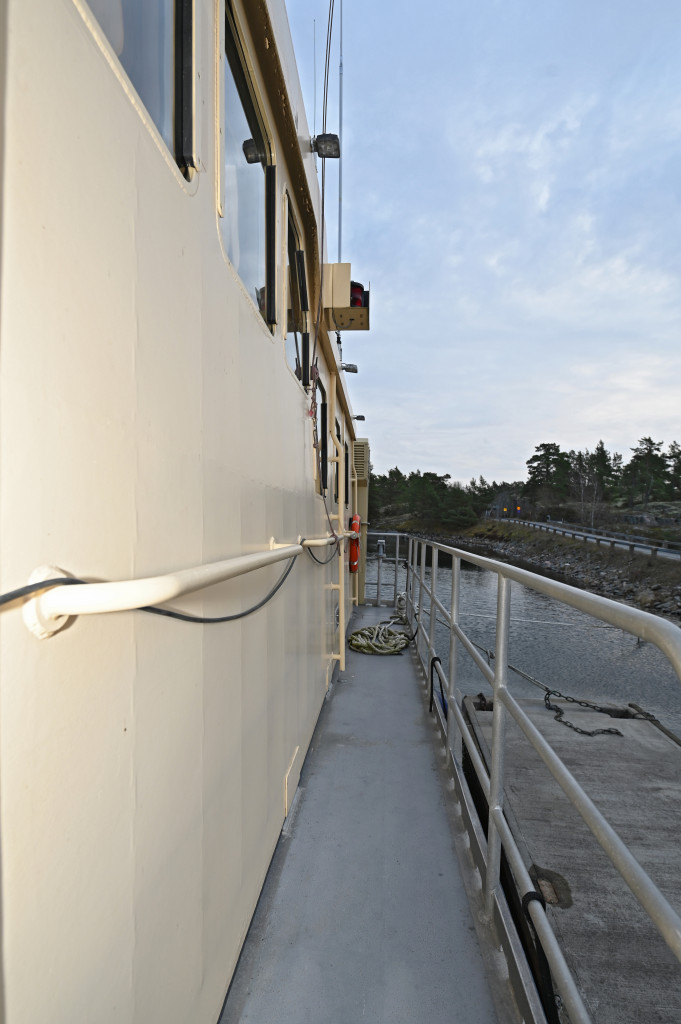

Deck
Bridge
Salon/galley

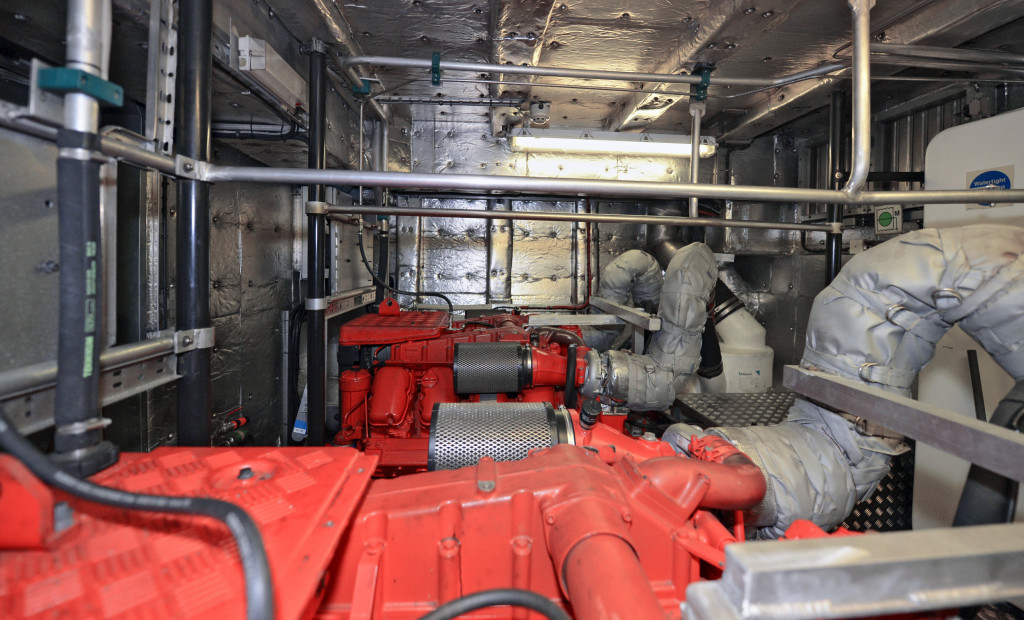

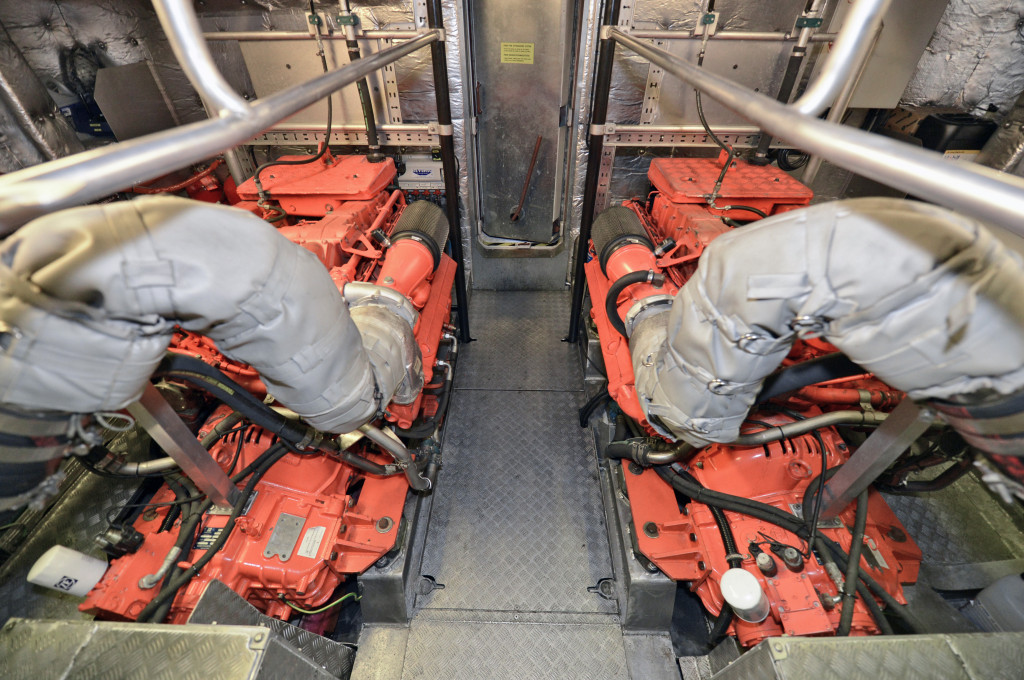

Engine room

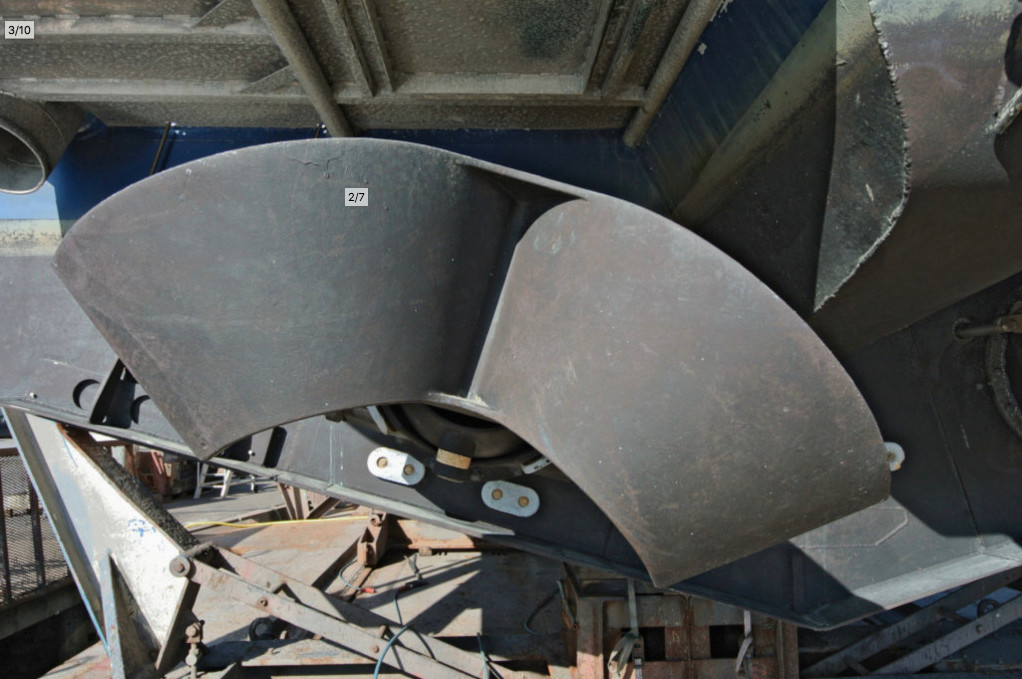

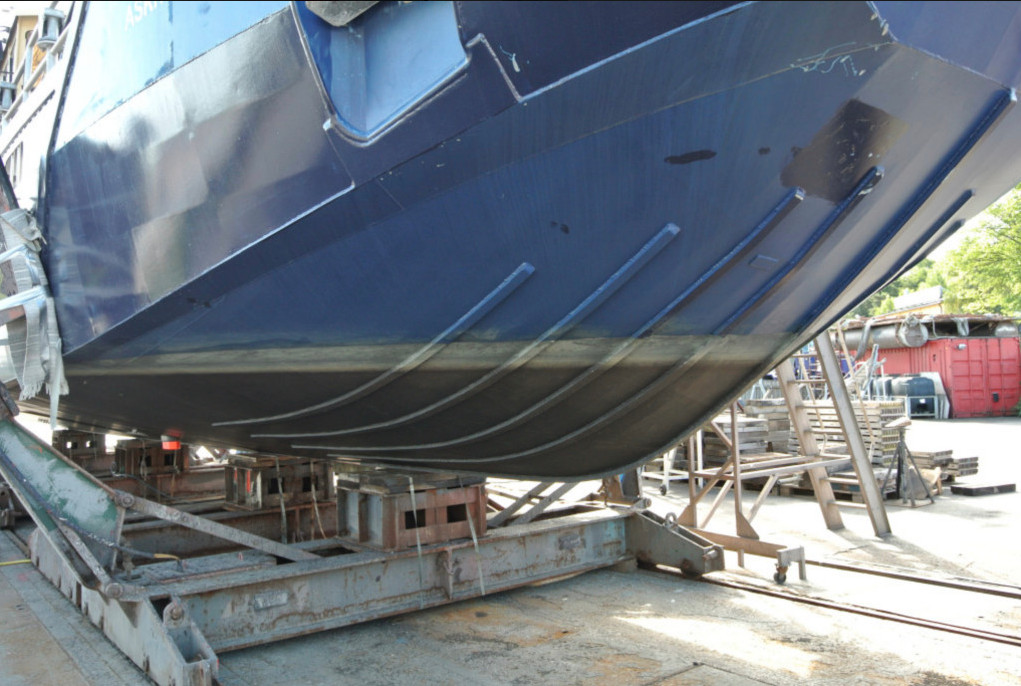

Under water parts.
Ljusterö 241202
All details given in good faith but not guaranteed. Equipment are subject to change or be removed from the vessel.
