Dot One

Kanalen, Kanalen II

Price: DKK 2.000.000

Ferry built at Søren Larsen and Sønners Skibsværft A/S in 1975. Operated between Thyborøn – Agger until 2019.

40.6 m x 9.8 m. Load capacity approx. 130 tonnes.

Approved for 12 passengers. Two cabins and mess below deck. Two passenger/storage spaces on deck.

Dot One can be inspected in Korsör, Denmark.

Specifications

  • (FlagState)Flag State: DK, Denmark, Danish Ship register
  • (ShipClassificationSociety)Classification: Danish Maritime Authority (DMA)
  • (CallSign)Call Sign:
  • (LOA)LOA: 40.6 m
  • (Length)Length:  m
  • (LPP)LPP:  m
  • (LWL)LWL:  m
  • (Beam)Beam: 9.8 m
  • (Draft)Draft: 2.2-2.9 m
  • (MoldedDraft)Molded Draft:  m
  • (Shipyard)Shipyard: Søren Larsen & Sønners Skibsværft A/S / FEAB Karlstadsverken
  • (BuildNumber)Yard Number: 133
  • (YearBuilt)Year Built: 1975
  • (BoatType)Vessel Type: Ferry
  • (ConversionShipyard)Refitted at:
  • (ConversionShipyardNotes)Refit details:
  • (HullMaterial)Hull Material: Steel
  • (HullMaterialThickness)Thickness:  mm
  • (SuperstructureMaterial)Superstructure Material:
  • (SuperstructureMaterialThickness)Thickness:  mm
  • (HomePort)Home Port: Kerteminde
  • (AirDraft)Air Draft:  m
  • (Height)Height from keel:  m
  • (Tonnage)Tonnage: 197 GT / 68 NT
  • (LightDisplacement)Light Ship:  t
  • (Displacement)Displacement: 29 t
  • (BuiltForClass)Built to Class:
  • (ClassType)Class Type:
  • (BuiltForClassType)Built to Class Type:
  • (Cabins)No. of cabins:
  • (MaximumPassengersForSpeedRange1)No. of passengers: 12
  • (MaximumPassengersForSpeedRange2)No. of passengers:
  • (EngineFuelConsumptionPerHour)Consumption:  litres/hour
  • (EngineFuelConsumptionTonnesPerDay)Consumption:  tonnes/day
  • (EngineFuelConsumptionPerDistance)Consumption:  litres/distance
  • (EngineCruisingSpeed)Cruising Speed: 9 knots
  • (EngineTopSpeed)Top Speed:  knots
  • (EngineRange)Range:
  • (CargoCapacity)Cargo Capacity:
  • (Crane)Crane(!):

Machinery

  • (MainEngines)Main Engines: 2 Scania DI12 59 M, 602kW, 26000 Running Hours
  • (MainEngineNotes)Comment:
  • (ReversingGear)Gearbox: ZF, Reduction 4.591
  • (PropulsionSystem)Drive type:
  • (DriveShaftDiameter)Shaft ∅:  mm
  • (Sterndrive)Stern drive:
  • (RudderType)Rudder Type:
  • (AuxiliaryEngines)Auxiliary Engines:  Valmet, Stamford generator UCM 224 G1, 60, 400 Sisu, Stamford generator UCM 274 C2, 60, 400
  • (EmergencyGenerators)Emergency Generators:
  • (PortGenerators)Port Generators:
  • (BowThrusters)Bow Thrusters:
  • (ShipMachineryNotes)Misc:

Engine Room Equipment

  • (LubricationOilOWSs)Lube Oil Separators:
  • (FuelOilOWSs)Fuel Separator: CJC
  • (BilgeWaterOWSs)Bilge Water Separators:
  • (Heaters)Heaters:
  • (OilBurners)Burner: Bentone , MK II
  • (WaterHeaters)Water Heaters Boilers:
  • (HydrophorePumps)Hydrophore Pumps:
  • (BallastPumps)Ballast Pumps:
  • (AirStartPressureTanks)Pressure Tanks:
  • (AirStartCompressors)Air Start Compressors:
  • (AirCompressors)Compressors:
  • (IsolationTransformers)Transformers:
  • (BilgePumps)Bilge Pumps:
  • (Stabilizers)Stabilizers:
  • (SteeringGears)Steering Gears:
  • (DesalinationUnits)Water Makers:
  • (Inverters)Inverters:
  • (StartBatteries)Start Batteries:
  • (FirePumps)Fire Pumps:
  • (ConsumptionBatteries)Consumption Batteries:
  • (EngineRoomEquipmentNotes)Misc: Victron energy skylla tg 24 volt 100 amp
    Transmotor battery charger

Navigation Equipment

Tank Capacity

  • (DieselTanks)Diesel: 13400L
  • (DayTanks)Day tanks:
  • (FreshWaterTanks)Fresh water: 12000L
  • (BlackWaterTanks)Septic:
  • (GreyWaterTanks)Grey water:
  • (BilgeWaterTanks)Bilge water:
  • (WasteOilTanks)Waste oil:
  • (LubricationOilTanks)Lube oil:
  • (HydraulicOilTanks)Hydraulic oil:
  • (CoolingWaterTanks)Cooling water:
  • (FoamTanks)Foam tank:
  • (BallastTanks)Ballast:
  • (TanksNotes)Misc:

Safety Equipment

  • (LifeBoats)Life rafts:  Sea-Safe KHA(TOB)-16, 16 Persons Sea-Safe KHA(TOB)-16
  • (MOBBoats)MOB boat: Viking 470 GRP 1, 4.75 meter, Evinrude 30 hp
  • (FireAlarmControlPanels)Fire alarm unit: Consillum C 303
  • (NavigationLightControls)Navigation light controls:
  • (EPIRBs)EPIRB: Ocean Signal
  • (SARTs)Radar transponder SART:  EM-Trak SART 100
  • (GMDSS_VHFRadios)Portable GMDSS VHFs:  ICOM M1 EURO V Entel
  • (AdultLifeJackets)Adult life jackets: 0
  • (ChildLifeJackets)Infant life jackets: 0
  • (FireSuppressionSystem)Fire fighting, engine room:
  • (EmergencyBatteryVoltage)Emergency battery Volt: 0
  • (EmergencyBatteryAmperage)Emergency battery Amp: 0
  • (SmokeDetector)Smoke detector:
  • (HeatDetector1)Heat detector 1:
  • (HeatDetector2)Heat detector 2:
  • (FireIsolation)Fire isolation:
  • (SafetyEquipmentNotes)Misc:

Certificates and documents

Pictures

    Korsör, November 2023.

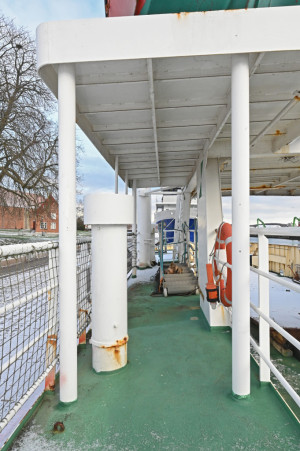

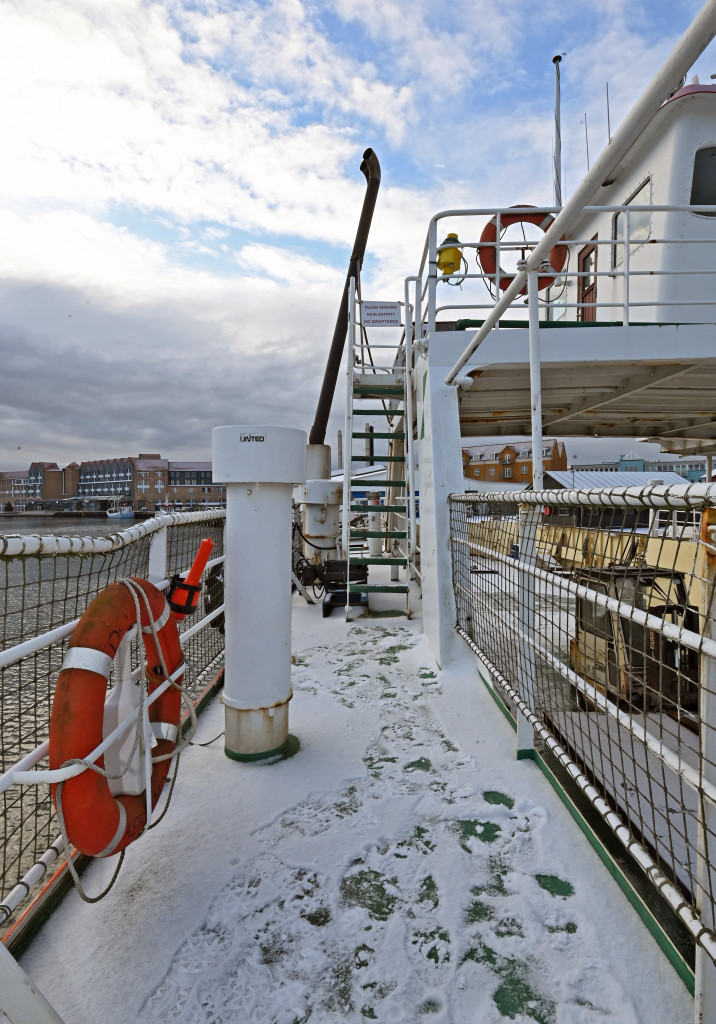

    Main deck.

    Passenger area, WC and storage on main deck.

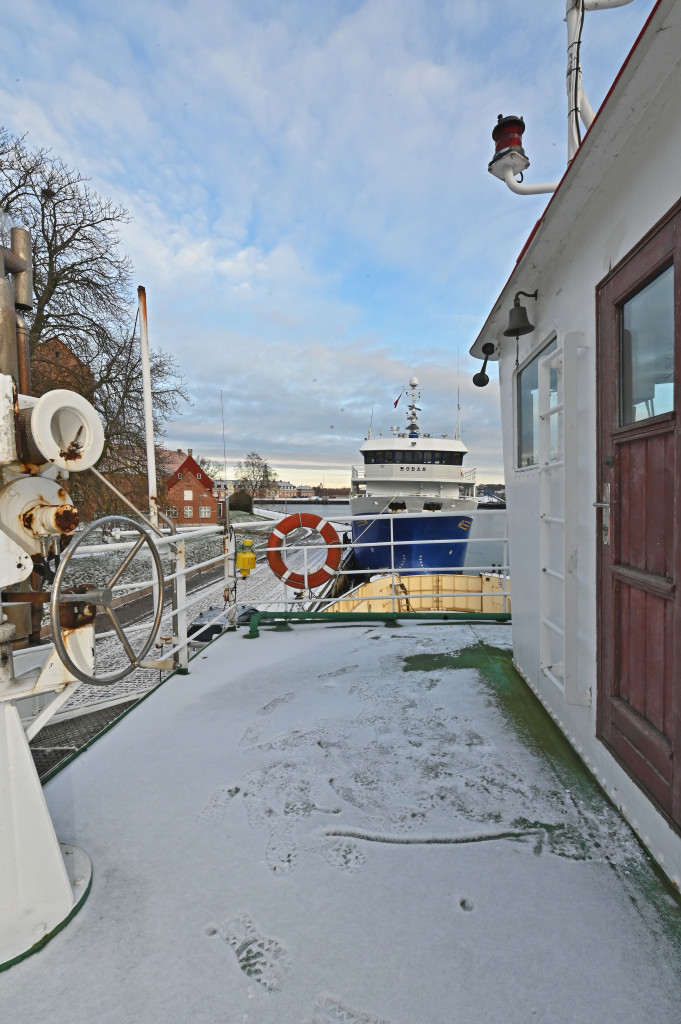

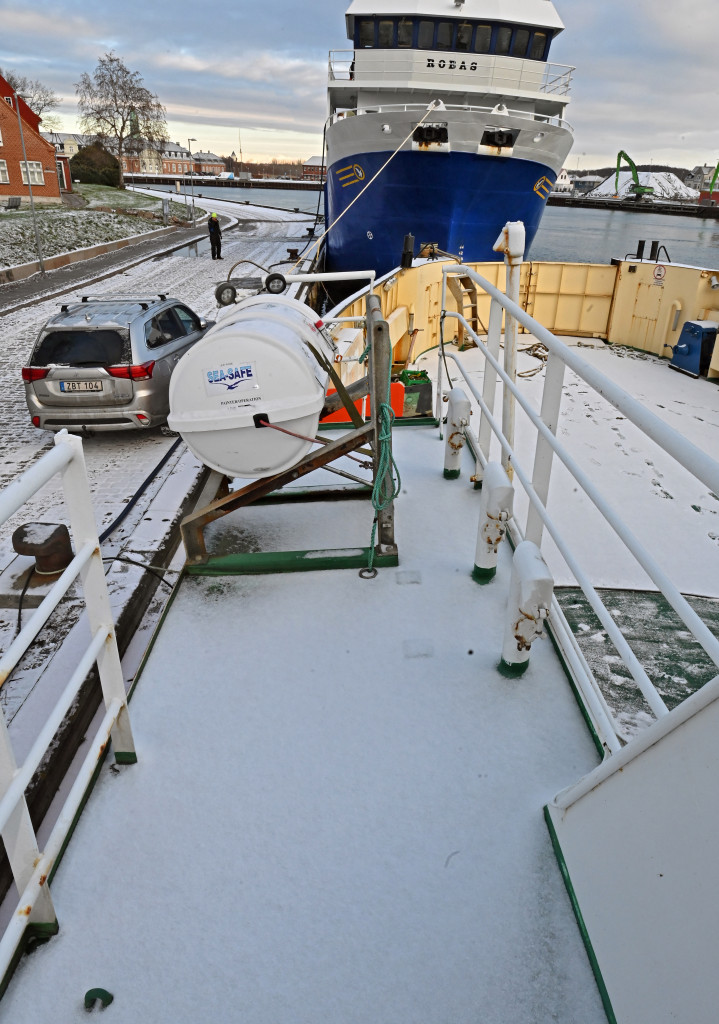

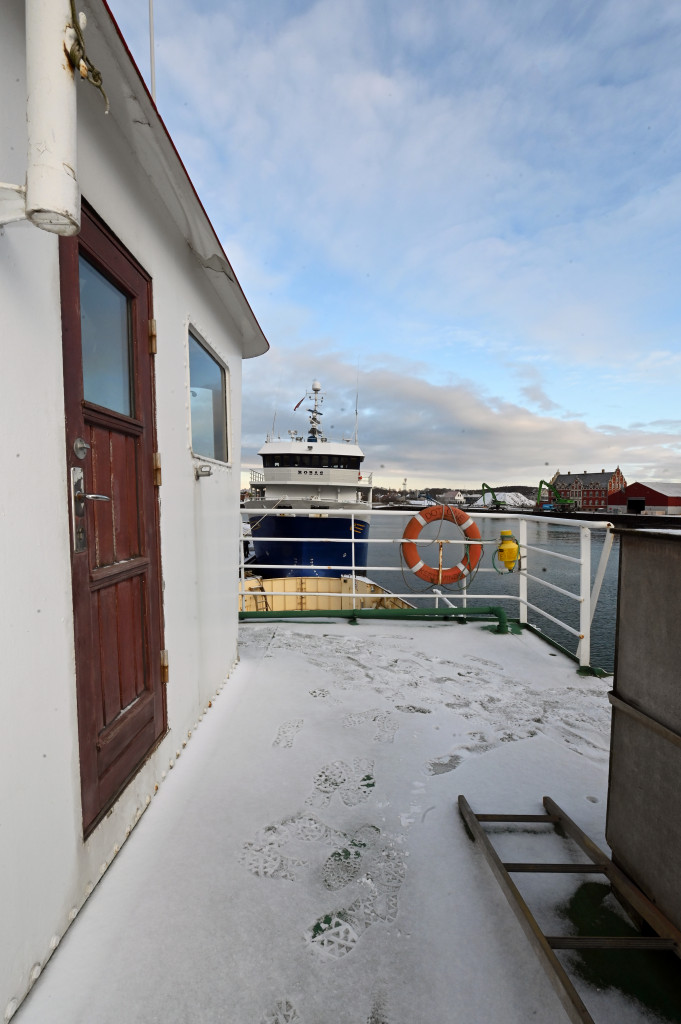

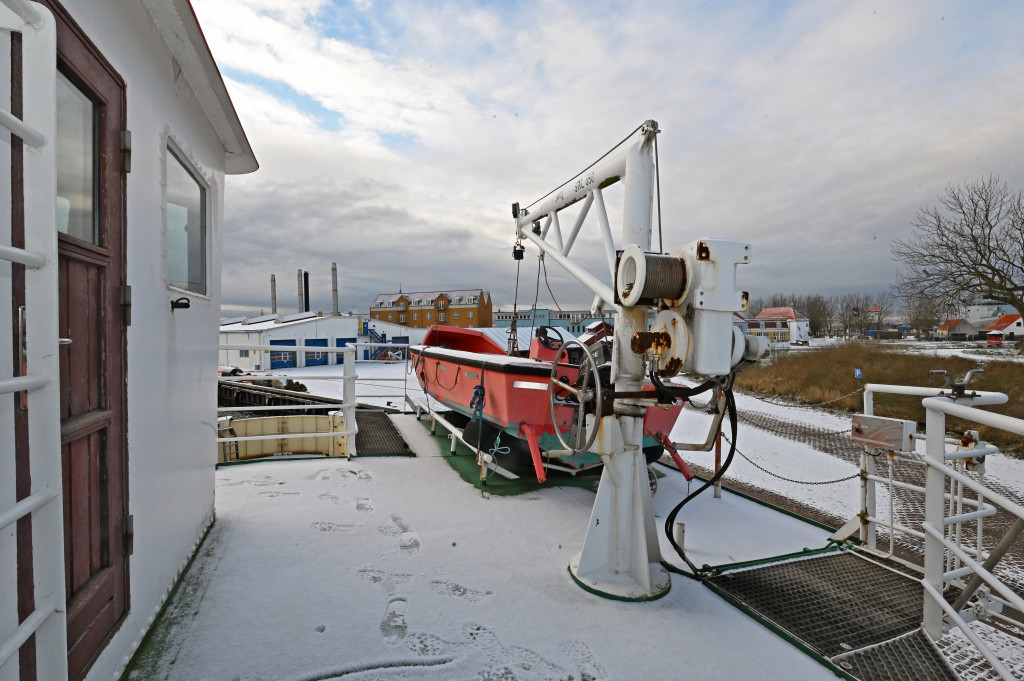

    Upper deck outside wheelhouse.

    Wheelhouse.

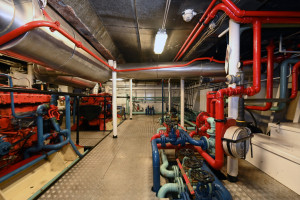

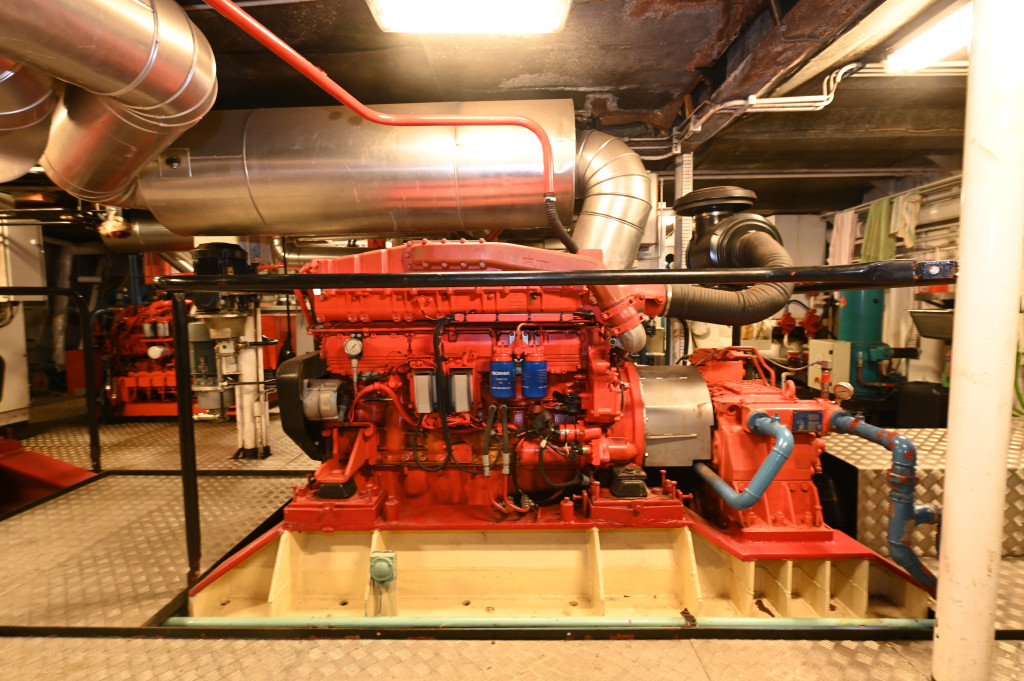

    Engine room.

    Galley and two cabins below deck.

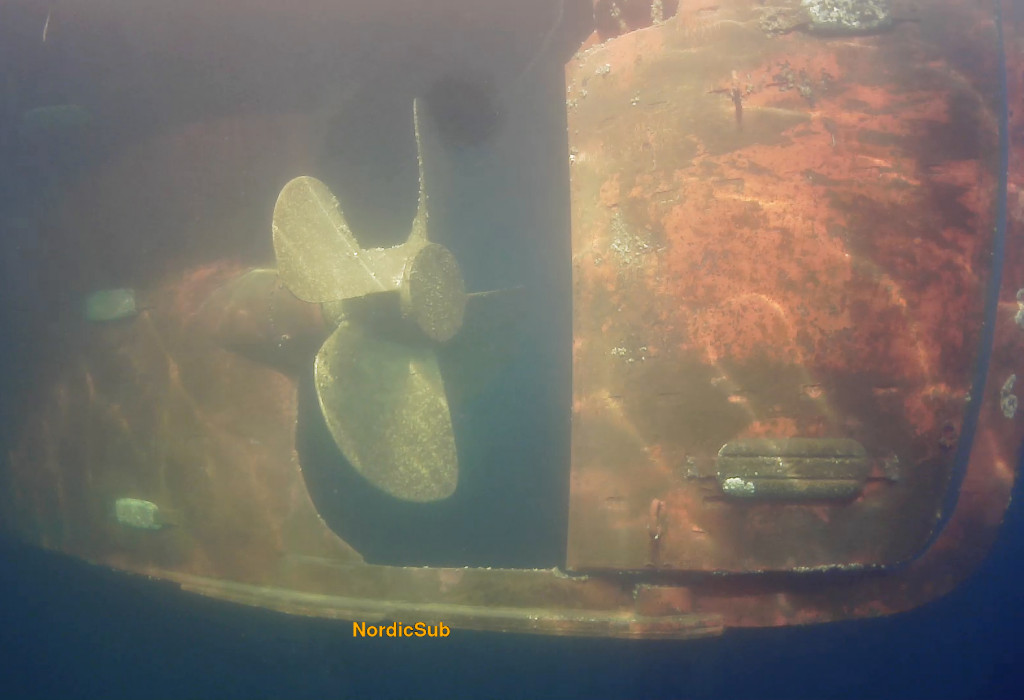

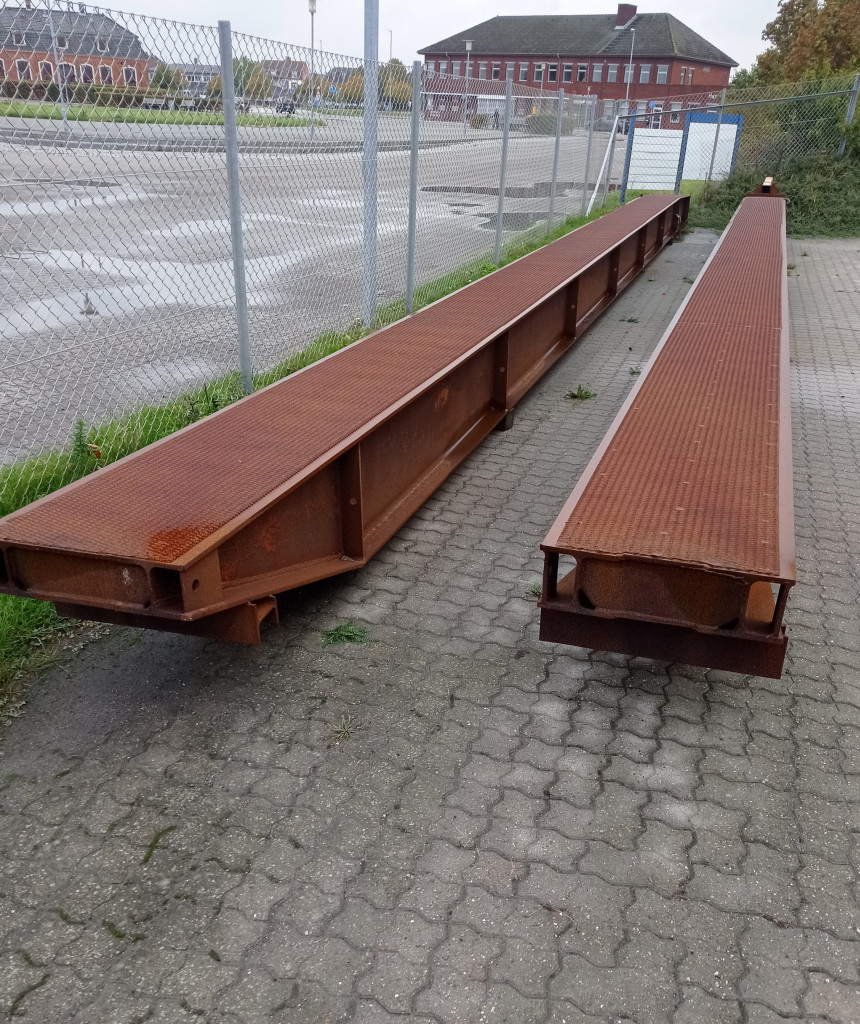

    Owners pictures


All details given in good faith but not guaranteed. Equipment are subject to change or be removed from the vessel.
